Welded wire mesh

Min. Order: 50 square meters

Quick quote

Minimum order?

We do our best to maintain one of the lowest minimum order amounts in the industry. Our low minimum order is ideal for research and development projects, prototypes and small quantity requirement.

Is shipping included in the price?

Unless otherwise stated, pricing does not include shipping costs. As a rule, when pricing is provided, delivery is considered FOB Origin.

Why choose us?

We have rich experience of wire mesh fence products,and have quality control department, so please trust us,we will be your best choice.

How is wire mesh priced?

Pricing for wire mesh is based upon quantity required. Generally speaking, the larger the quantity you request, the better pricing per unit you will receive. The most common way pricing is provided is by the square foot. Abbreviated as SQFT, square foot pricing multiplies the width of the piece or roll of mesh by the width of the piece or the roll.

SAMPLE POLICY

At this time,Is only able to offer samples for items readily available from stock. Samples for non-stock, custom manufactured, or items sold only in full 100FT rolls may not be available to purchase as a sample. This is unable to accept returns for sample orders.

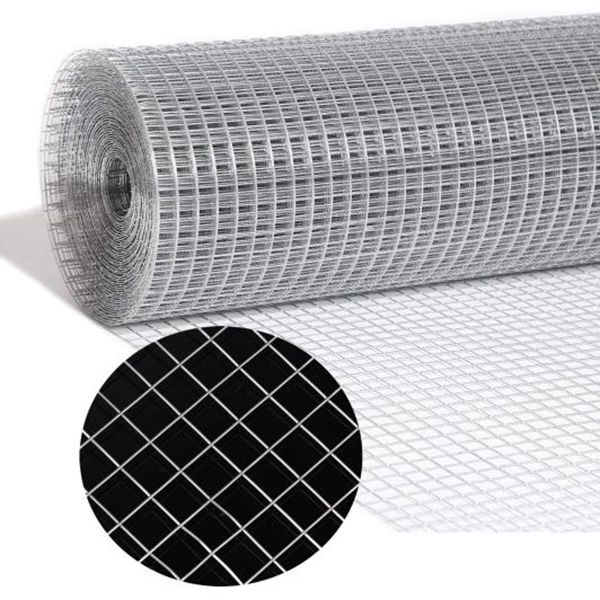

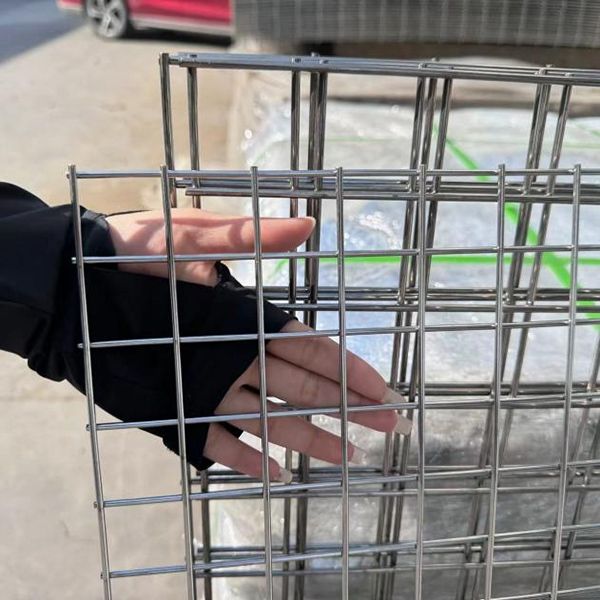

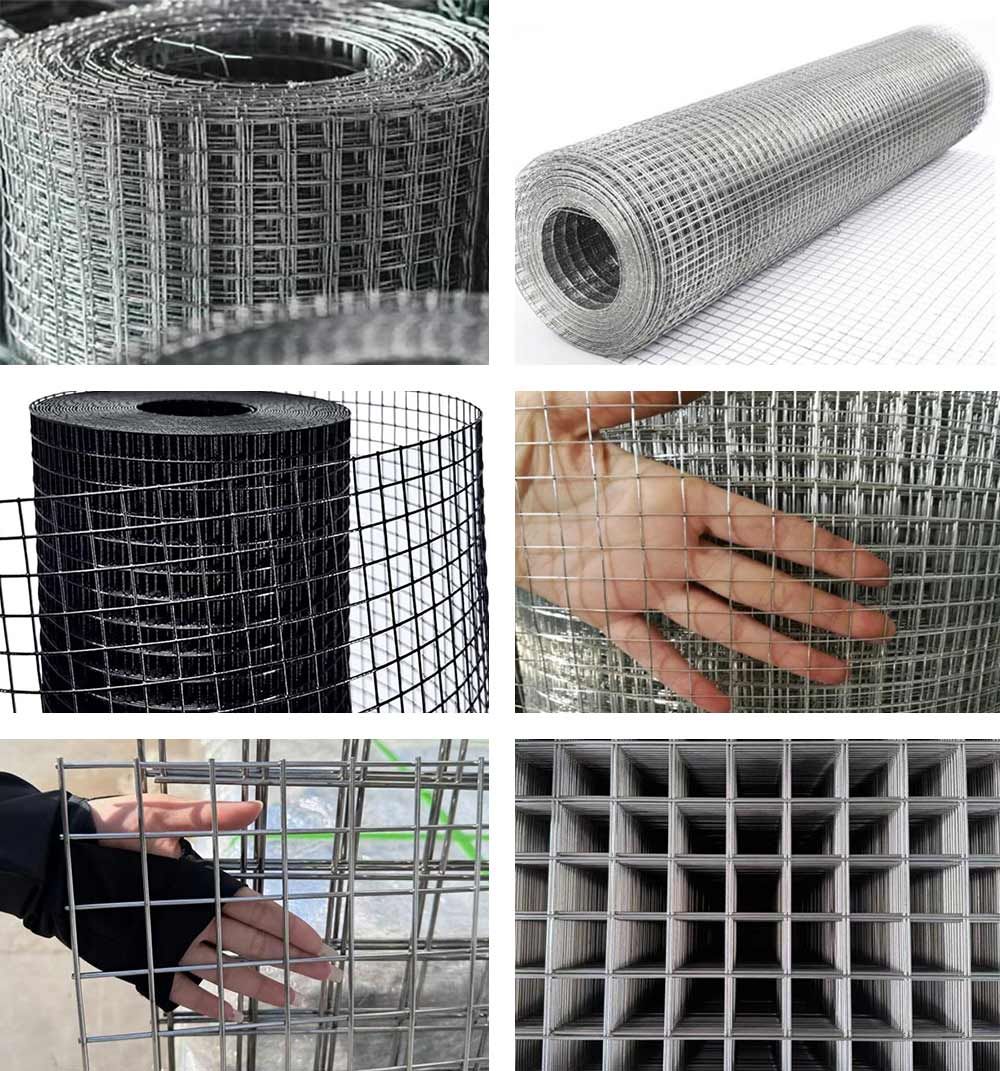

Welded wire mesh is one popular materials in concrete, construction and industry. It is made of low carbon steel wire, PVC coated wire and stainless steel wire, after welding or before welding and surface zinc treating .The welded wire mesh are the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields.

Product feature

01 High reliability

Welded wire mesh is characterized by high strength and bright luster. Even if cut on or applied to the part, the mesh will not loosen.Compared with general iron wire products, it has better anti-rust and anti-corrosion properties.

02 Extensive use

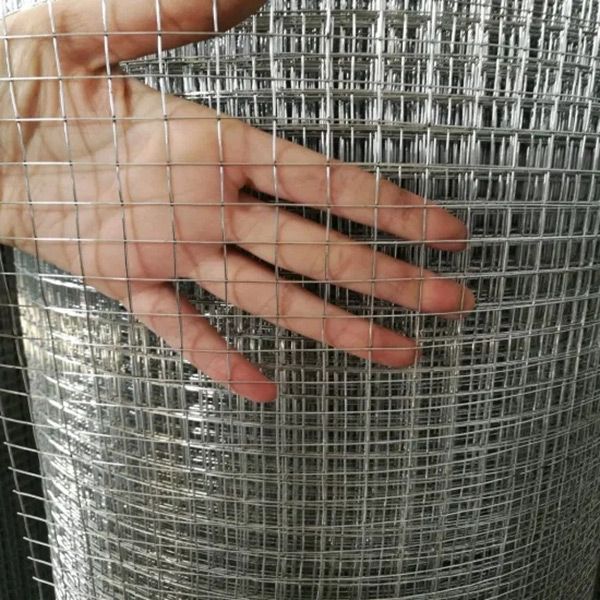

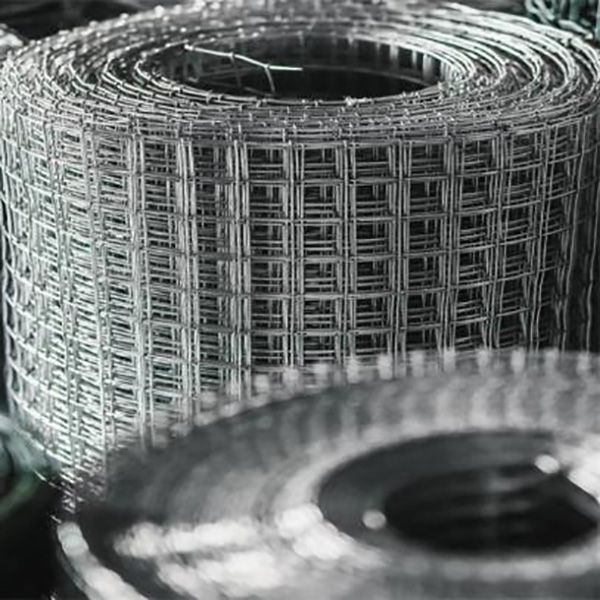

Galvanized Welded Wire Mesh has a square or rectangular grid,and it is welded at each joint,which is an extremely versatile wire mesh product be used for a number of application，including animal containment,temporary fences, home maintenance,sifting screen and craft projects.

03 Surface treatment

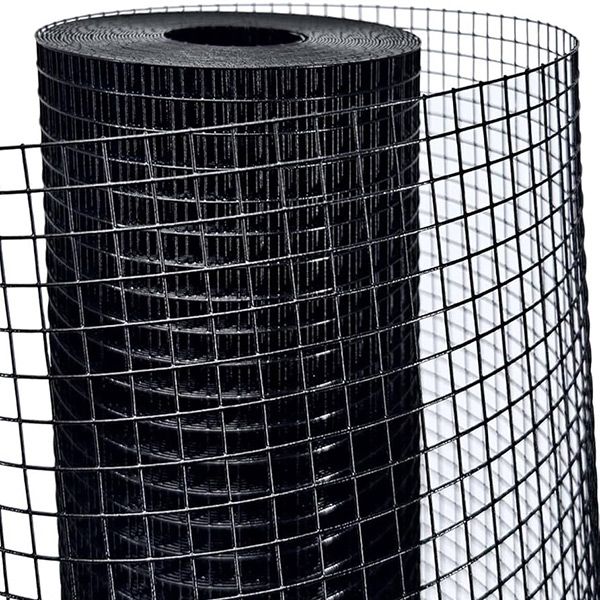

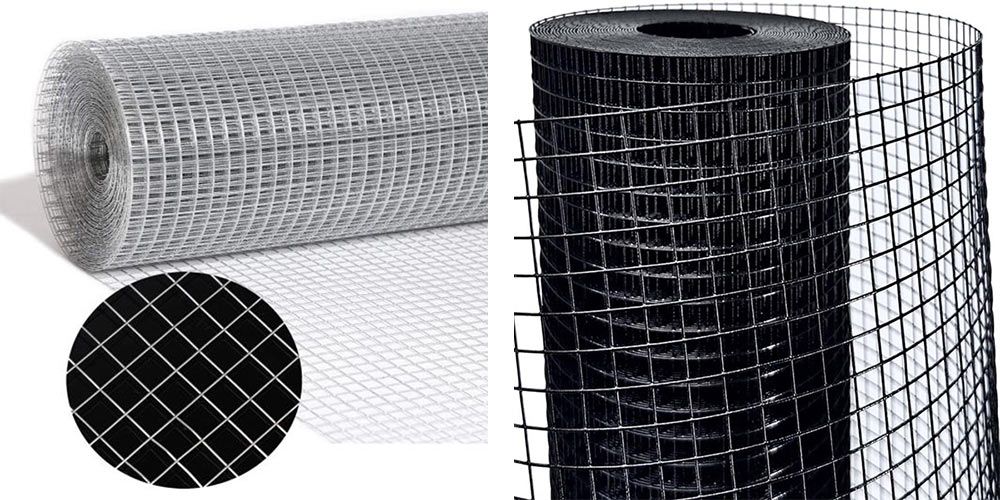

PVC welded wire mesh is made of electric welded wire mesh sheet and then coated with PVC powder or F powder. PVC welded wire mesh coating has uniform adhesion,good luster, long life and good anti-corrosion performance. Various colors can be sprayed according to the special requirements of customers.

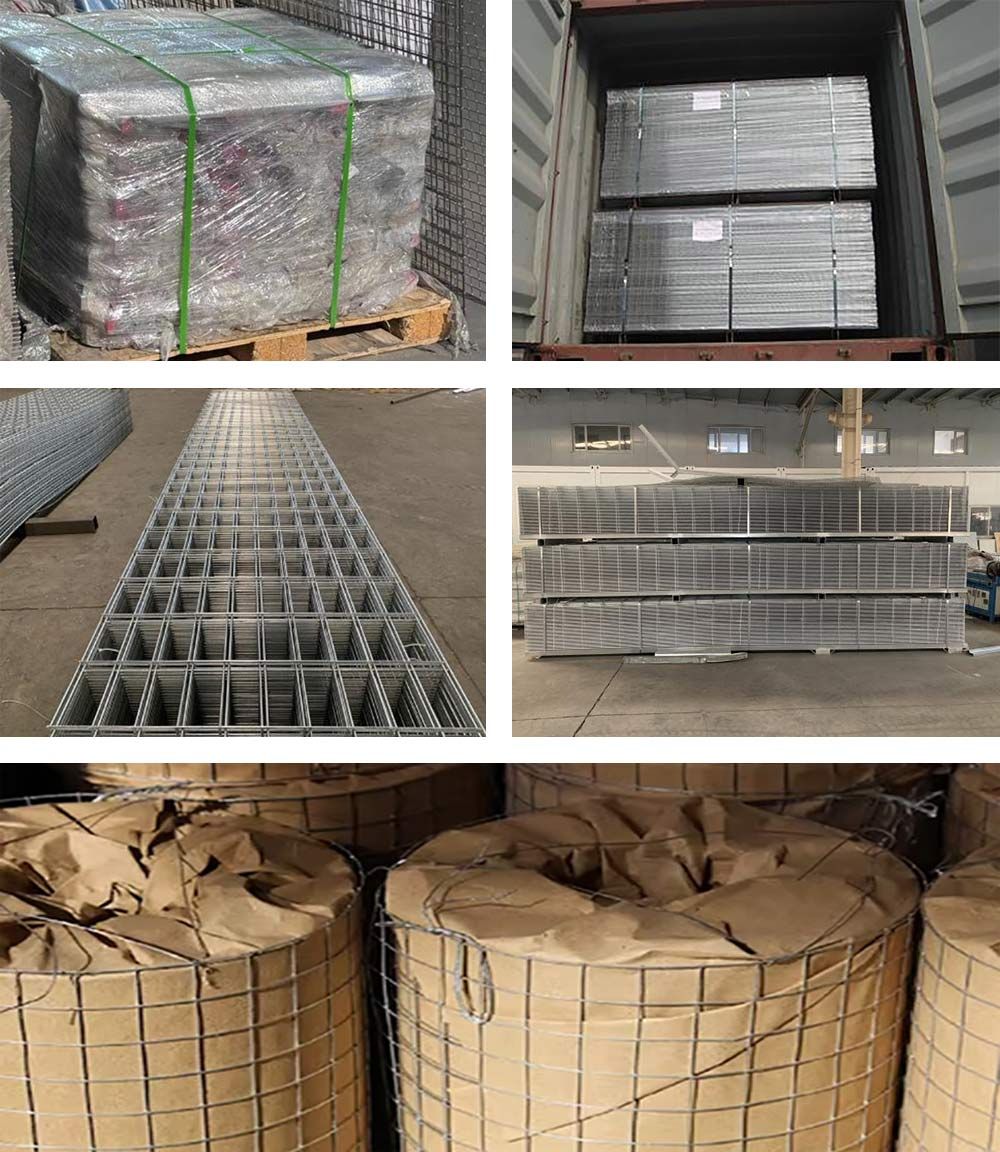

Packaging

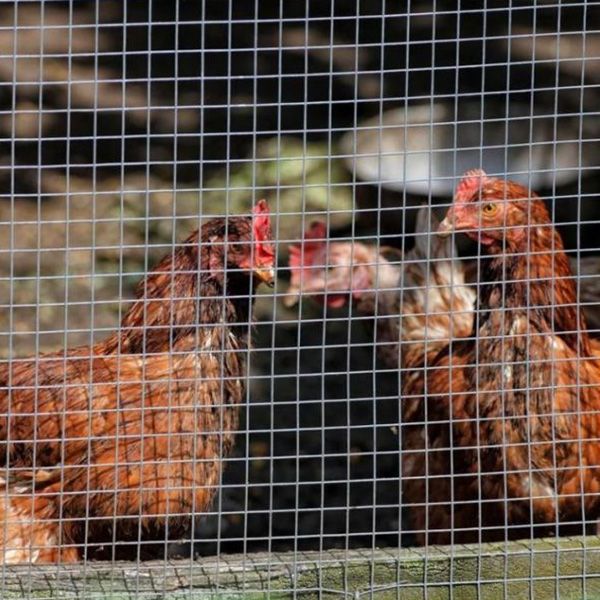

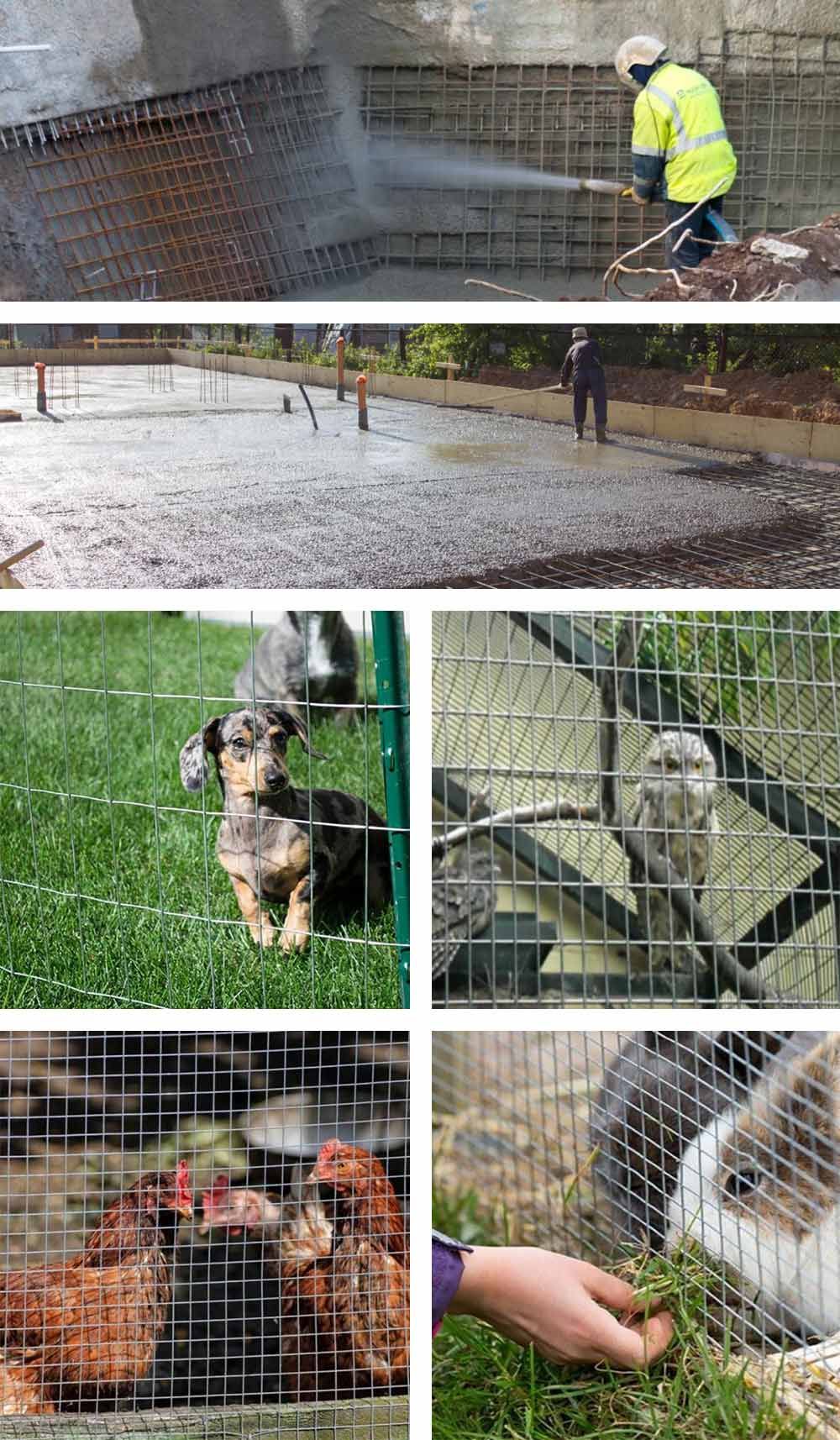

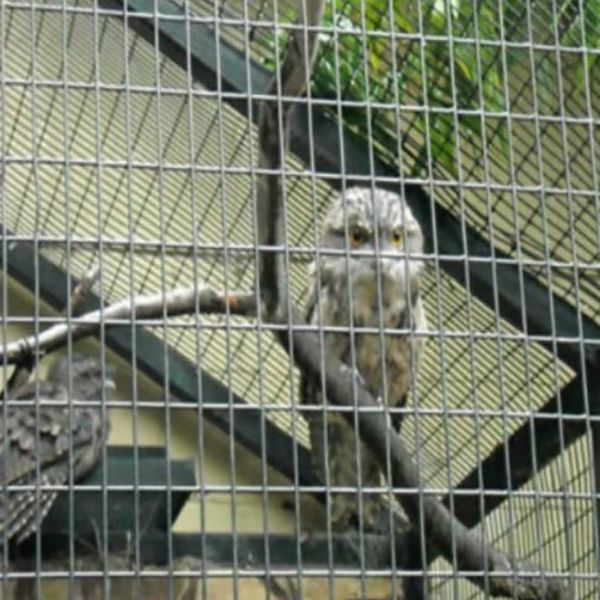

Welded wire mesh can be widely used in civil construction cement, raising chickens, ducks, geese, rabbits and zoo fences. It can also be used in building external walls, high-rise residential buildings, and plays an important role in external wall insulation.Protection of machinery and equipment, highway guardrail, sports place purse Seine, road green belt protection net.

Hole Size		Wire Diameter	Panel Sizes
In inch	In mm	Wire Diameter	Common sizes: 3’6’;4’8’;5’10’; 12m;22.9m;24m Other sizes can be made as request
1/2” * 1/2”	12.7mm*12.7mm	1.0mm-2.0mm
1” * 1”	25.4mm*25.4mm	1.5mm-3.5mm
1” * 2”	25.4mm*50.8mm	2.0mm-5.0mm
5/4” * 5/4”	31.8mm*31.8mm	2.0mm-4.0mm
3/2” * 3/2”	38.1mm*38.1mm	2.0mm-5.0mm
2” * 2”	50.8mm*50.8mm	2.0mm-6.0mm
2” * 3”	50.8mm*76.2mm	2.0mm-6.0mm
3” * 3”	76.2mm*76.2mm	3.0mm-7.0mm
4” * 4”	101.6mm*101.6mm	3.0mm-8.0mm
5” * 5”	127mm*127mm	4.0mm-9.0mm
6” * 6”	152.4mm*152.4mm	4.0mm-10.0mm
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request
