Welded gabion

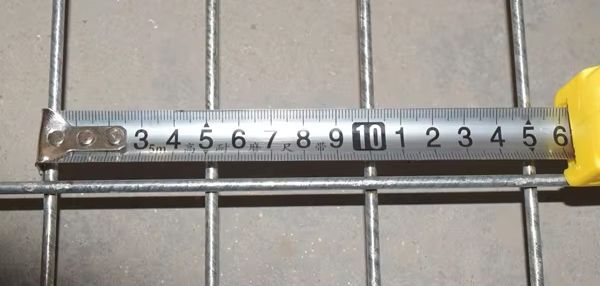

Welded Gabion Baskets Retaining Structures beats the competition with faster erection time and baskets that last longer and keep their shape. Our weld gabions are made from prefabricated Class III zinc-coated 8, 9 or 11 gauge welded wire mesh fabric with a 50mmX50mm or 100mmX100mm spacing, and may be field cut to fit curves, culverts, or angles.

Min. Order: 50 square meters

Quick quote

Minimum order?

We do our best to maintain one of the lowest minimum order amounts in the industry. Our low minimum order is ideal for research and development projects, prototypes and small quantity requirement.

Is shipping included in the price?

Unless otherwise stated, pricing does not include shipping costs. As a rule, when pricing is provided, delivery is considered FOB Origin.

Why choose us?

We have rich experience of wire mesh fence products,and have quality control department, so please trust us,we will be your best choice.

How is wire mesh priced?

Pricing for wire mesh is based upon quantity required. Generally speaking, the larger the quantity you request, the better pricing per unit you will receive. The most common way pricing is provided is by the square foot. Abbreviated as SQFT, square foot pricing multiplies the width of the piece or roll of mesh by the width of the piece or the roll.

SAMPLE POLICY

At this time,Is only able to offer samples for items readily available from stock. Samples for non-stock, custom manufactured, or items sold only in full 100FT rolls may not be available to purchase as a sample. This is unable to accept returns for sample orders.

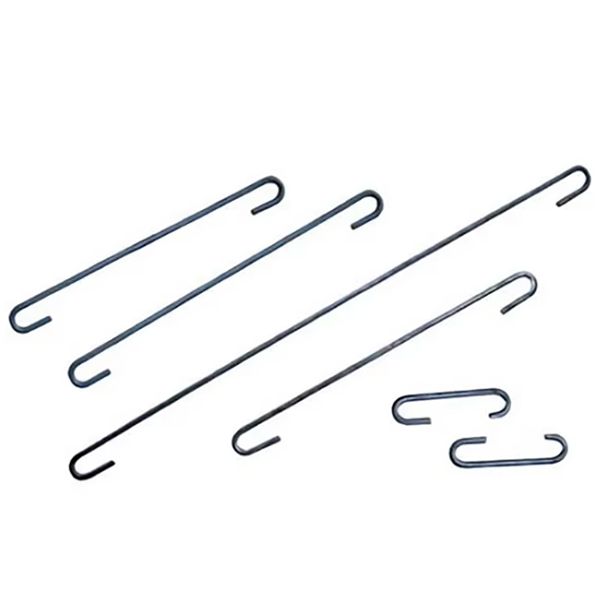

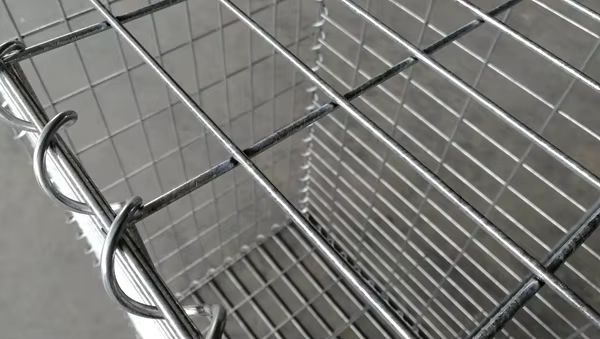

Hooks

* 3.5m-4.0mm hooks

* 4pcs-9pcs per set

* Strengthen the gabion cage

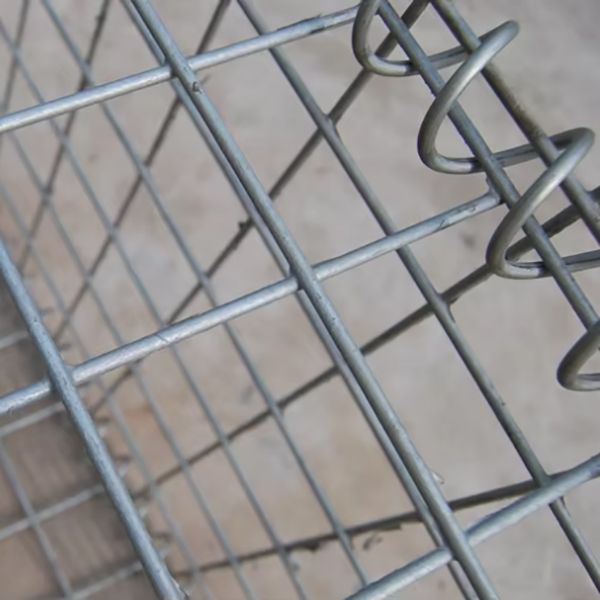

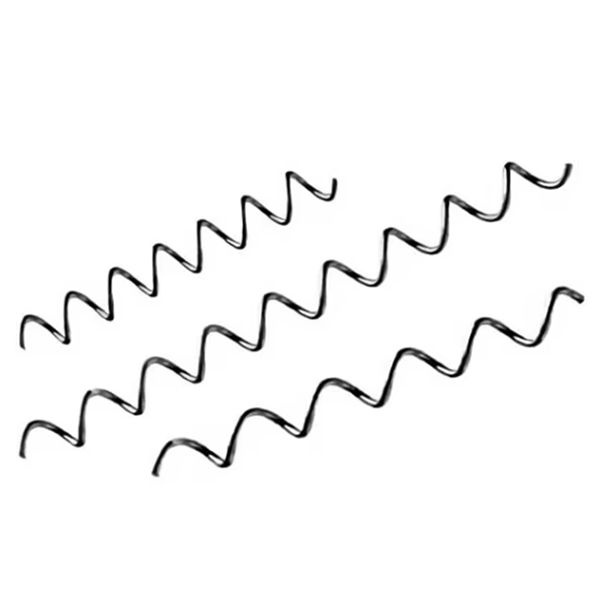

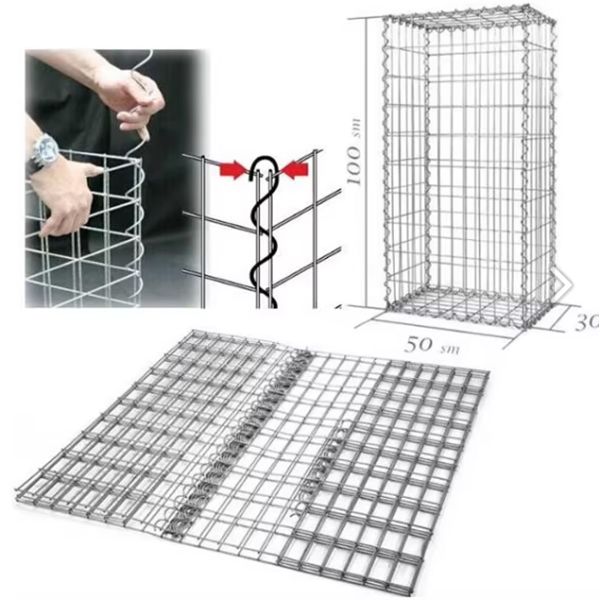

Spirals

* 4.0mm Spirals

* Galvanized or Galfan coating

* Easy assemble

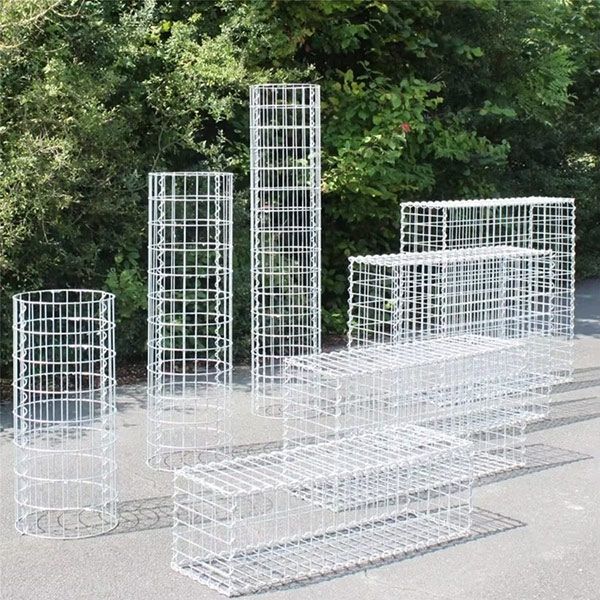

Complete Gabion

* Different shape square or round, etc.

* Different size

* Economical and Beautiful

Main Features

Hot-dipped Galvanized Wire

* Galvanized before welding

* Cheaper

* Wire is smooth and shinning

Galfan Wire

* High zinc >200g

* Economical

* long life time >8-10years

Heavy Galvanized

* Galvanized after welding

* Top Quality

* Zinc>300g

* Longest life time >10-20year

Advantage

a) Easy to handle and install.

b) High Tensile and anti-Impact capability.

c) Long Life , regular use.

d) can fill with sand ,stone ,cement.

General & Dimension

Popular Size of Welded Gabion Box
Gabion Cage Size	Wire Diameter (mm)	Mesh Opening Size (mm)
Gabion 100X30X30	3.5, 4.0, 4.5, 5.0	50X50, 50X100, 75X75, 100X100
Gabion 100X50X30	3.5, 4.0, 4.5, 5.0	50X50, 50X100, 75X75, 100X100
Gabion 100X80X30	3.5, 4.0, 4.5, 5.0	50X50, 50X100, 75X75, 100X100
Gabion 100X50X50	3.5, 4.0, 4.5, 5.0	50X50, 50X100, 75X75, 100X100
Gabion 100X80X50	3.5, 4.0, 4.5, 5.0	50X50, 50X100, 75X75, 100X100
Gabion 100X100X50	3.5, 4.0, 4.5, 5.0	50X50, 50X100, 75X75, 100X100
Gabion 100X100X100	3.5, 4.0, 4.5, 5.0	50X50, 50X100, 75X75, 100X100
Gabion 200X100X100	3.5, 4.0, 4.5, 5.0	50X50, 50X100, 75X75, 100X100
PS: Different Quality can be made as your requirment

Welded gabion box is widely used in retaining wall structures, rockfall and soil protection and so on. Welded gabions are filled on site with hard and durable stone to form mass gravity structures. And welded gabions are quicker and simpler to install than woven mesh gabions.

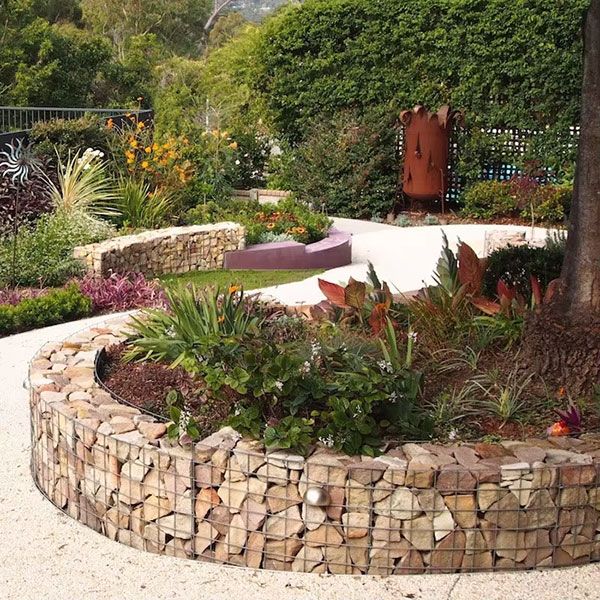

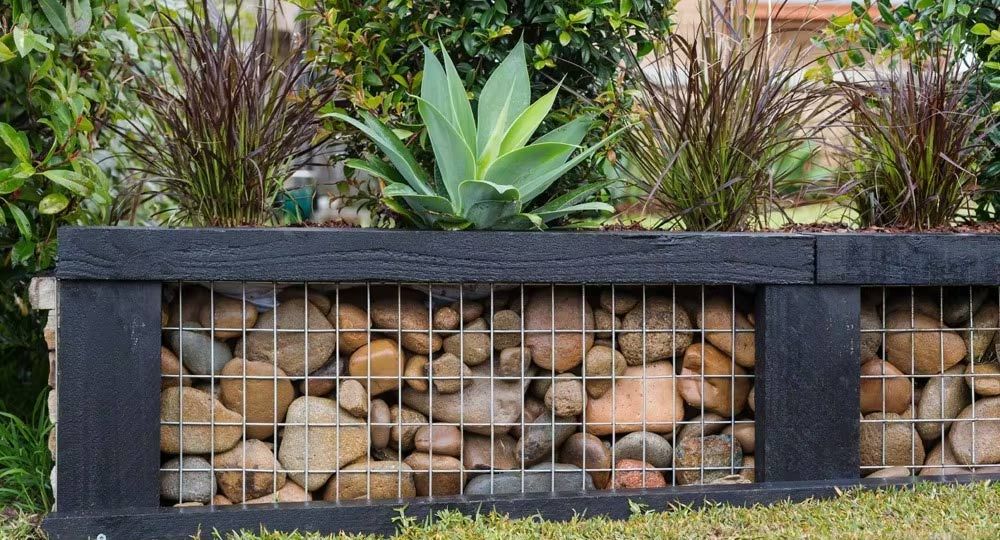

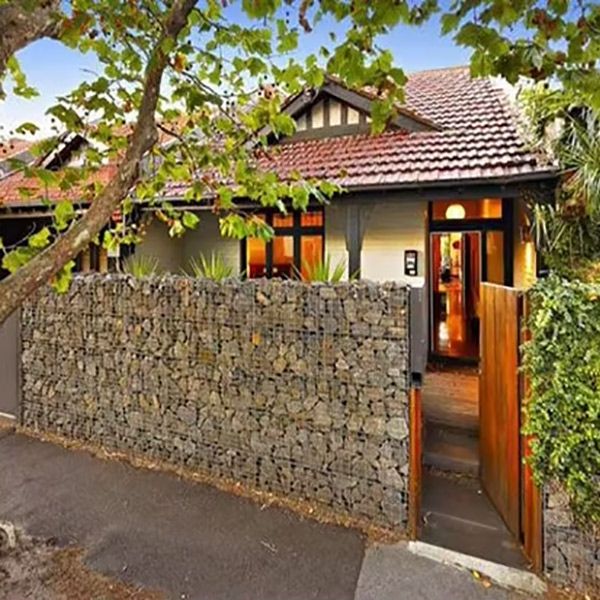

In more applications, the welded garden gabion structure can be made into different sizes and shapes for decoration applications. They can be made into gabion pot, staircase, table and bench, postbox. It can also be used to form particular landscapes, such as waterfall, fireplace and decorative wall.

Product name	Welded gabion
Delivery Time	22-30 days
Hole Shape	Square
Wire Gauge	3.5-5.0mm
Processing Service	Welding
Surface treatment	Galvanised
Packaging	compaction and bundle or in pallet
Wire Diameter	3.0mm/3.5mm/4.0mm/4.5mm/5.0mm
Opening	5050/7575/100*100mm
Cage Dimension	10.30.3m/10.50.5m/110.5m/111m/211m
Material	Galvanized Iron Wire
